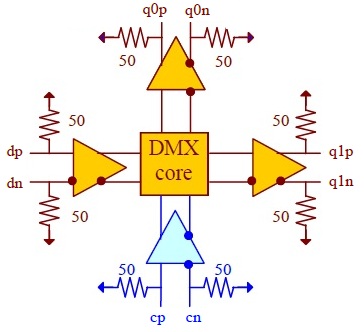

Fig. 1. Functional Block Diagram
The temperature stable and broadband ASNT5090-PQC SiGe IC can be utilized as a high speed 1:2 demultiplexer and is intended for use in high-speed measurement / test equipment. ASNT5090-PQC can receive a high speed differential data input signal dp/dn and effectively demultiplex it into two high speed differential data output signals q0p/q0n and q1p/q1n by using a high speed differential clock input signal cp/cn.The part’s I/Os support the CML logic interface with on chip 50Ω termination to vcc and may be used differentially, AC/DC coupled, single-ended, or in any combination. It operates from a single +3.3V or -3.3V power supply.
