ASNT_MPSG

4 channel 0.1 to 40Gbps PRBS Generator with USB Control Interface

Synchronous four-channel with data rates from 0.1Gbps to 40Gbps
Generates industry standard PRBS7, PRBS9, PRBS11, PRBS15, PRBS17, PRBS20, PRBS23, PRBS29, or PRBS31 signals
Generates an independent custom data pattern up to 1Mbit in each channel
Generates 2 channels QPRBS
Adjustable differential data output with amplitudes from 0V to 1.4V
8ps rise/fall time for PRBS data outputs
Show all features
Frequency (min): 100 Mbps
Frequency (max): 40 Gbps
Power: 15000
Price: Request

Product Details

MPSG desc

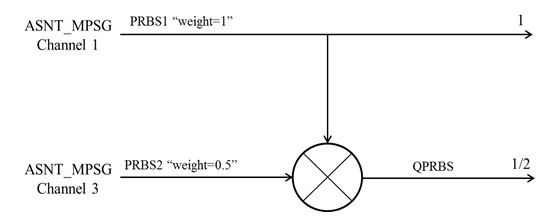

Figure 1. Functional Block Diagram

The ASNT_MPSG can be used for test applications, design verification, and R&D environments. The four-channel pseudo random bit sequence (PRBS) generator shown above operates within a wide data range. An external single-ended half-rate clock is needed for the instrument’s operation. An input frequency of n GHz corresponds to a 2n Gbps PRBS data output. The output data has adjustable amplitude. The trigger output has a user defined divide ratio of 4-1024 in increments of 4, in relation to the input high-speed clock. The four differential output channels are comprised of 2.92mm (K) female connectors with internal AC coupling, and CML interface. The ASNT_MPSG can also generate a QPRBS signal by combining its channel 1 with its channel 3 with different weights on the signal.  The QPRBS signal is generated out of channel 3 as shown in Figure 1. The same way, a second QPRBS signal can be generated by combining channels 2 and 4.  All operation and adjustment controls are accessible through a GUI installed on a PC that should be connected to the unit through a USB port. The unit is powered with a single 12V/10A DC power source.
