2^7-1 / 2^15-1 PRBS Generator with USB Control Interface and on-board PLL

11ps Rise, 16ps Fall time for muxed PRBS data output
17ps Rise/Fall time for sync output
19ps Rise/Fall time for half-rate data outputs
VCO frequencies from 7.4GHz to 32.1GHz
User selectable clock divide by 2-to-512 sync output for scope triggering
Selectable PRBS7 or PRBS15 through USB
Show all features
Frequency (min): 10 kbps
Frequency (max): 48 Gbps
Power: 20000 mW
Package: Benchtop
Price: Request

Product Details

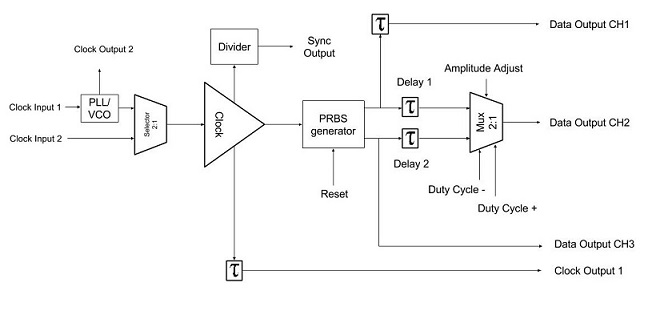

Figure 1. Functional Block Diagram

The ASNT_PRBS43A can be used for test applications, design verification, and R&D environments. The 2^7-1 or 2^15-1  pseudo random bit sequence (PRBS) generator operates from 10kbps to 48Gbps. Either an external half-rate clock or a reference clock to the onboard PLL is needed to generate the data outputs. Some output clock and data channels have adjustable phase and amplitude. The Sync output provides an oscilloscope triggering signal to view the data pattern for PRBS7 or eye diagram of PRBS7/PRBS15. A Windows GUI (compatible with Windows XP, 7, 8) is used to control the amplitude, phase, PRBS reset, divide ratio for sync and clock input control through a USB-B connector on the ASNT_PRBS43A. Power is supplied with an included AC-DC power supply.
